Netgate 1100 pfSense+ Security Gateway Appliance
Netgate 1100 pfSense+ Firewall Appliance
1.2GHz Marvell Armada 3720LP dual core ARM Cortex A53
1GB RAM & 8GB eMMC Flash
1 x USB3.0 / 1 x USB2.0 / MicroUSB Console
All Prices ex GST.
Checkout for GST and shipping costs.
We aim to dispatch all in-stock orders within 24 hours.

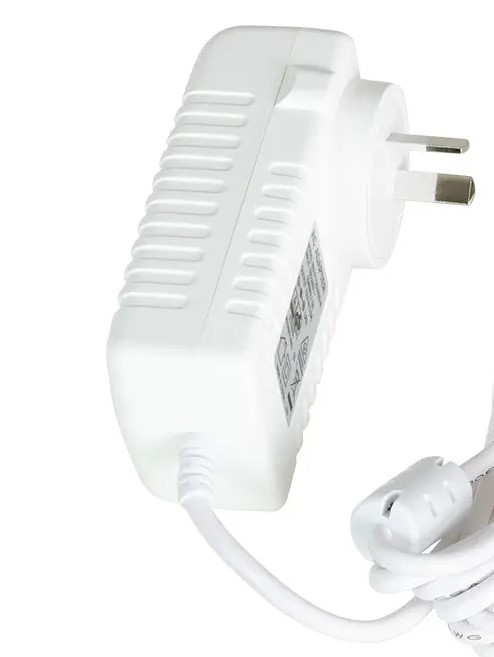

Certified for use in Australia & Includes an Australian Power Supply
If you are considering an old PC to run your pfSense appliance; please read this first.
Small Office Appliance
High throughput Small & Branch Office Solution
The SG-1100 is Netgate’s replacement for the highly successful SG-1000. Consumer and business customers will quickly appreciate that this product packs a serious punch with the factory edition of pfSense® software, world-class price-performance, elegant packaging, and an unbeatable low price. The SG-1100 is underpinned by the powerful, yet energy efficient, 64-bit Marvell ARMADA® 3720 network processing system-on-chip (SoC), which fully leverages dual Cortex®-A53 ARM® processor cores.
For users seeking an excellent firewall with up to 1 Gbps throughput, the SG-1100 is the new gold standard.
|SoC||Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz|
|System Memory||1 GB DDR4 RAM on board|
|Storage||8 GB EMMC|
|Network Interfaces||1x Marvell 88E6141 networking switch|
3x GbE Ethernet (WAN/LAN/OPT)
1x Mini PCIe slot(1)
|USB||1x USB 3.0|
1x USB 2.0
1x Micro USB port (console)
|Misc||Reset button, heatsink, 3 Status LED|
|Power||12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported)|
|Power Consumption||3.48W (idle)|
|Operating Temperature||0°C (32°F) to 45°C (113°F)|
|Enclosure||Plastic 110 x 84.6 x 31.75 mm (4.33" x 3.33" x 1.25")|
|Hardware Warranty||1 year standard with purchase|
|Certifications||CE, FCC, RoHS. Looking for RCM certification? Inquire with our Australia or New Zealand Partners.|
