Netgate 8200 MAX pfSense+ Security Gateway Appliance

    2,282.76 2282.76 AUD 2,282.76


    This combination does not exist.

    Netgate 8200 MAX pfSense+ Security Gateway
    16GB RAM / 128 GB NVMe M.2 SSD
    2 x 10 Gbps SFP+ / 2 x 1 Gbps (Combo) WAN
    4 x 2.5 Gbps RJ45 "direct" LAN
    2 x 3.0 USB / MicroUSB + RJ45 Console (Cisco pinout)

    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.


    Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)

    Physical Network I/O ports

    (2) 10 Gbps SFP+ WAN ports
    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports
    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) Intel i226 ports


    128 GB NVMe M.2 SSD (B+M Key)


    16 GB DDR4 w/o ECC, single channel (soldered down)

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)

    1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

    2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack


    3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU

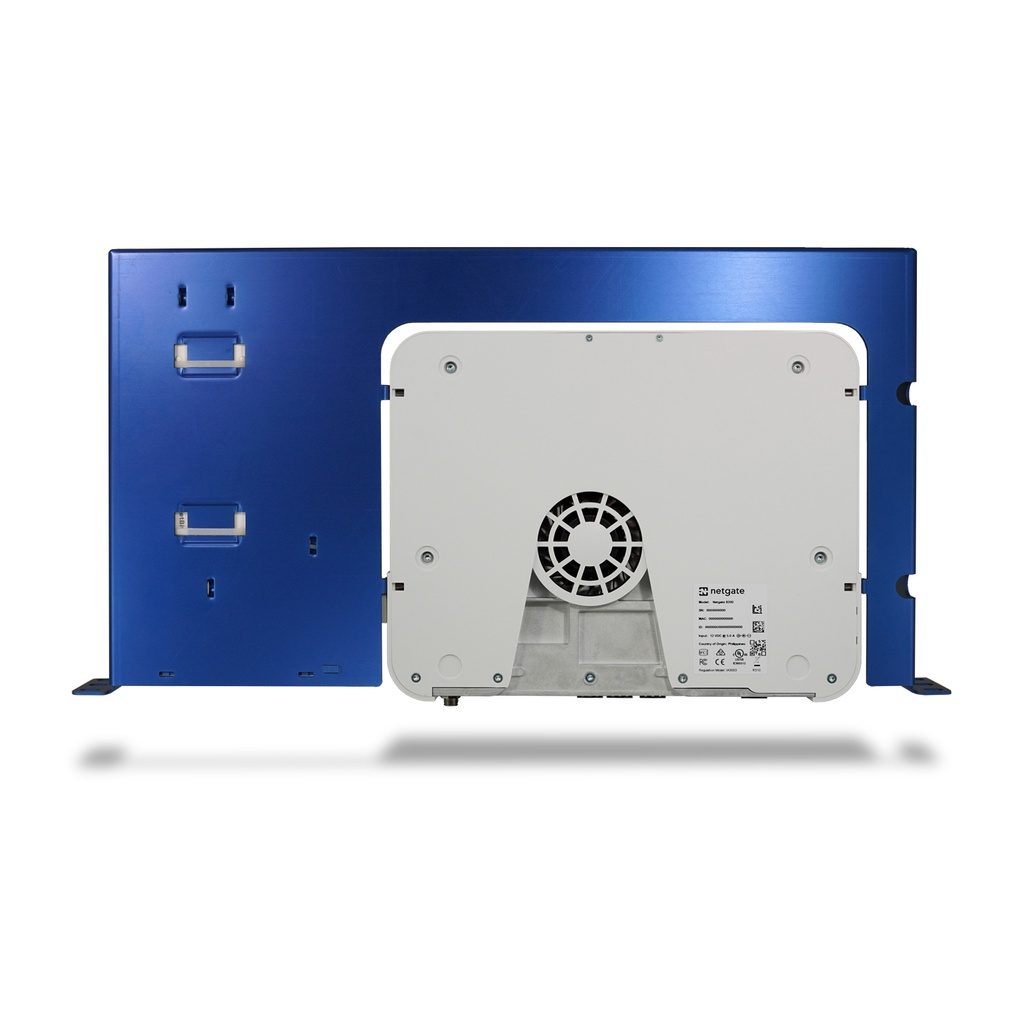

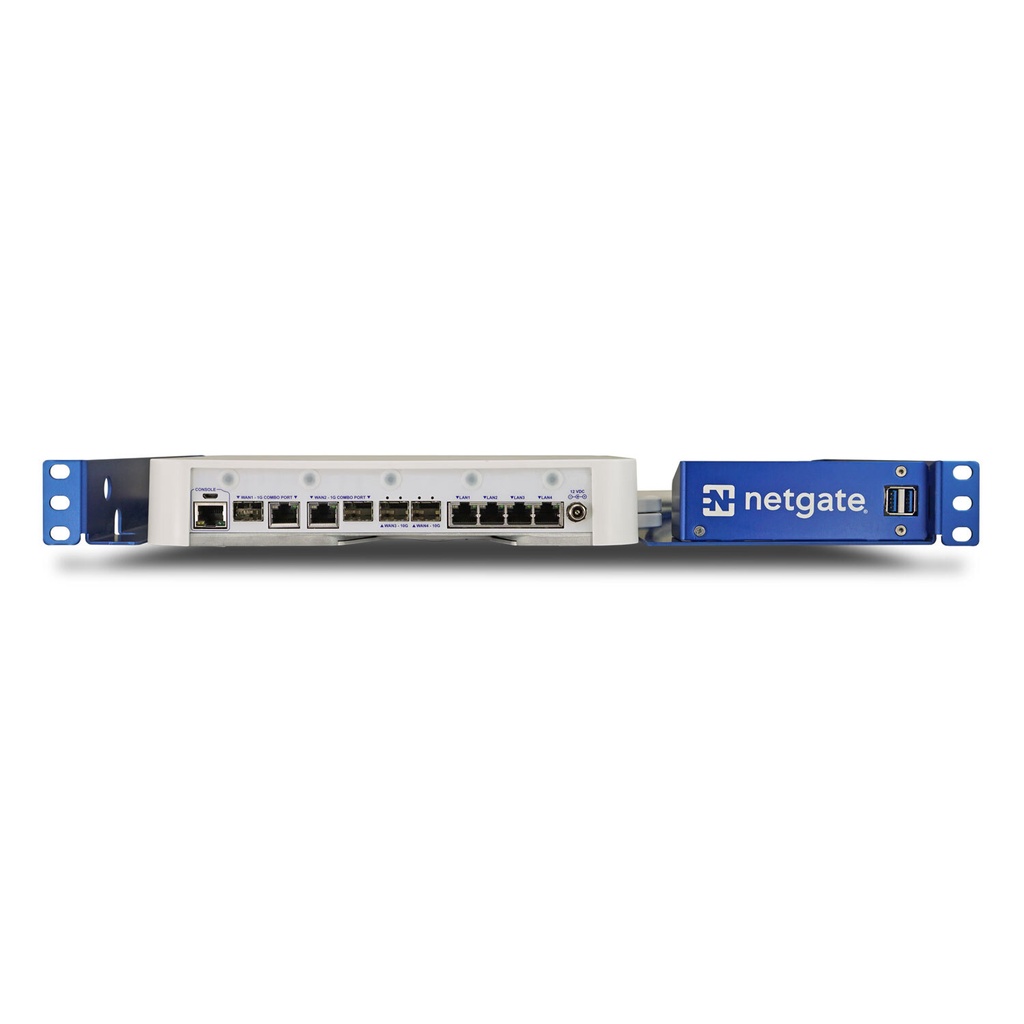

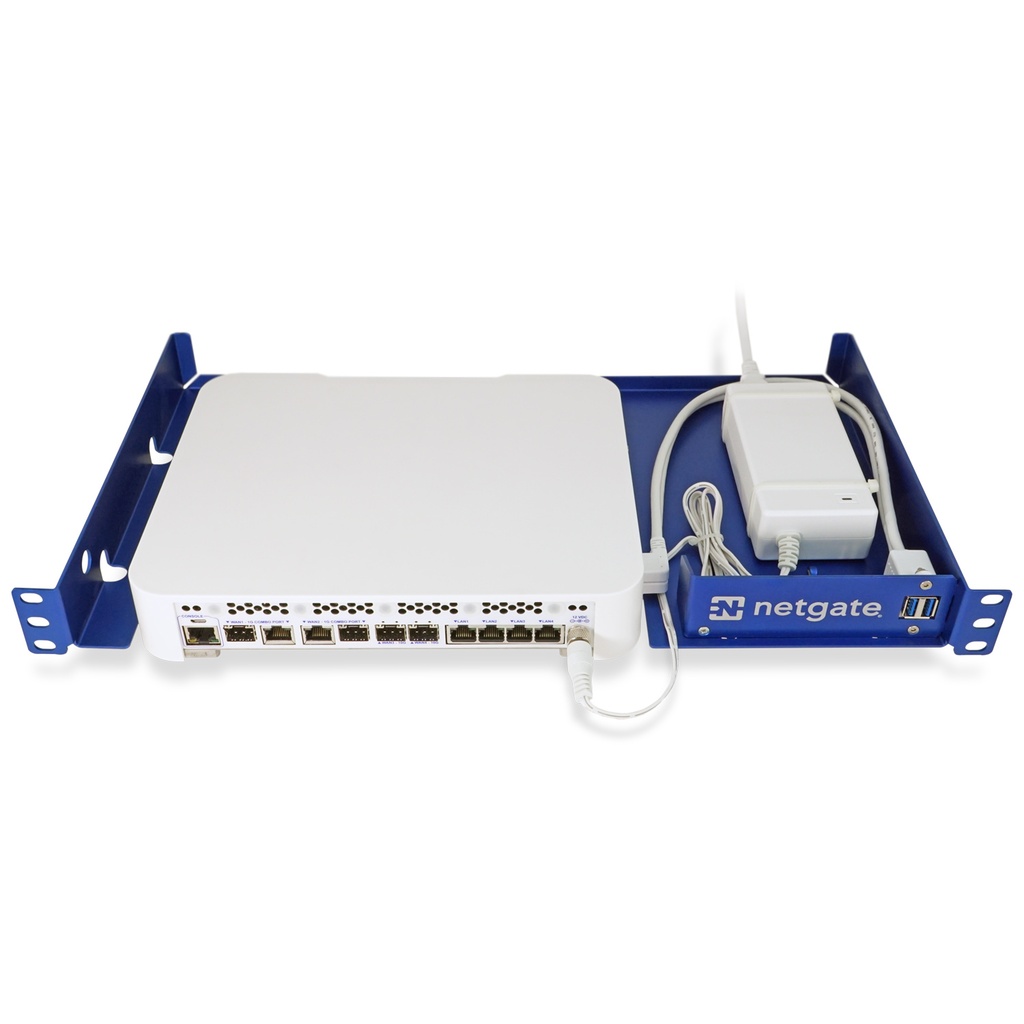

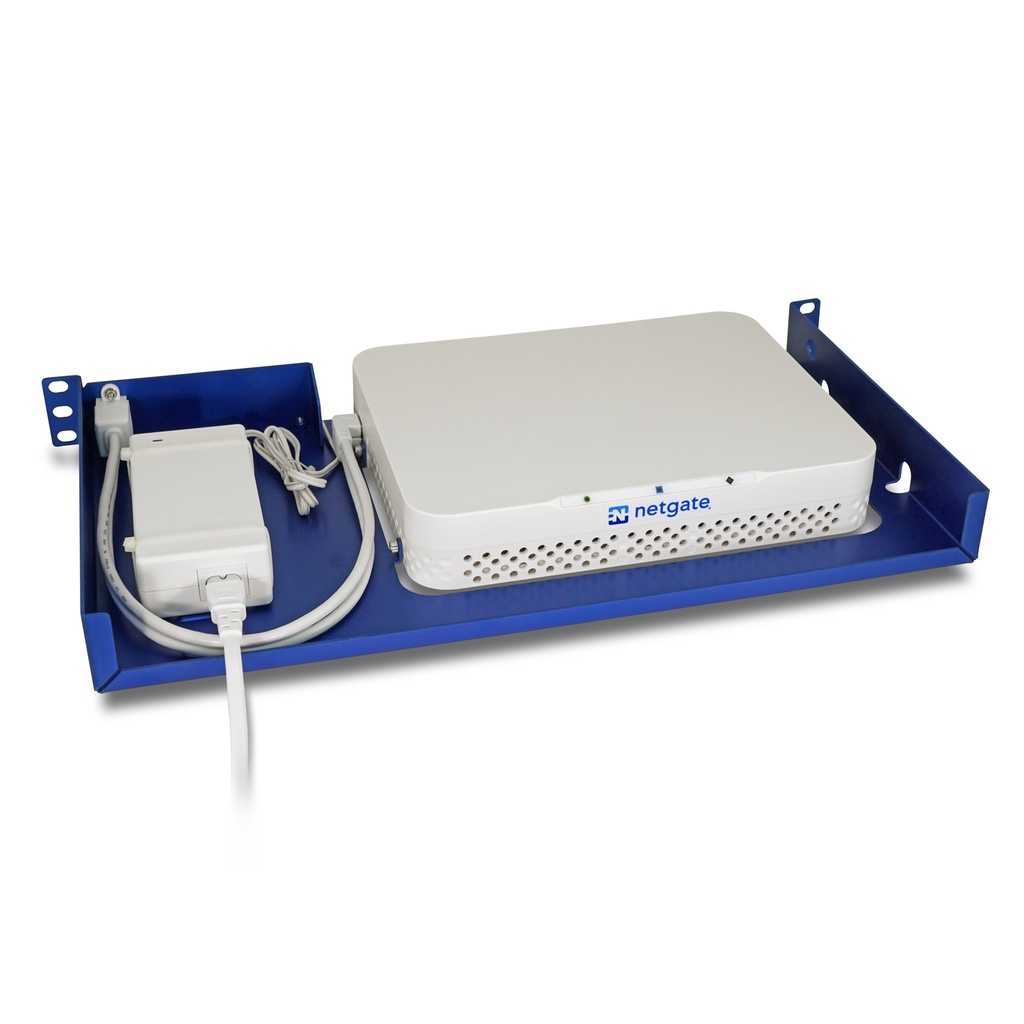

    1U Rack - Aluminum, plastic, and steel enclosure.

    19 x 10 x 1.75 inches
    482.6 x 254 x 44.45 mm


    Active - integrated quiet chassis fan with onboard control


    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7
    - UK Power Cord: BS 1363 to IEC320-C7
    - EU Power Cord: CEE7/16 to IEC320-C7
    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7


    0°C (32°F) to 40°C (104°F) - ambient

    CertificationsFCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA
