Netgate 4200 BASE pfSense+ Security Gateway Appliance

    947.10 947.1 AUD 947.10


    This combination does not exist.

    Netgate 4200 BASE pfSense+ Firewall Appliance
    2.1 GHz Intel® Atom® C1110 with AVX2, 4-core
    4 GB DDR5 Memory / 16 GB eMMC

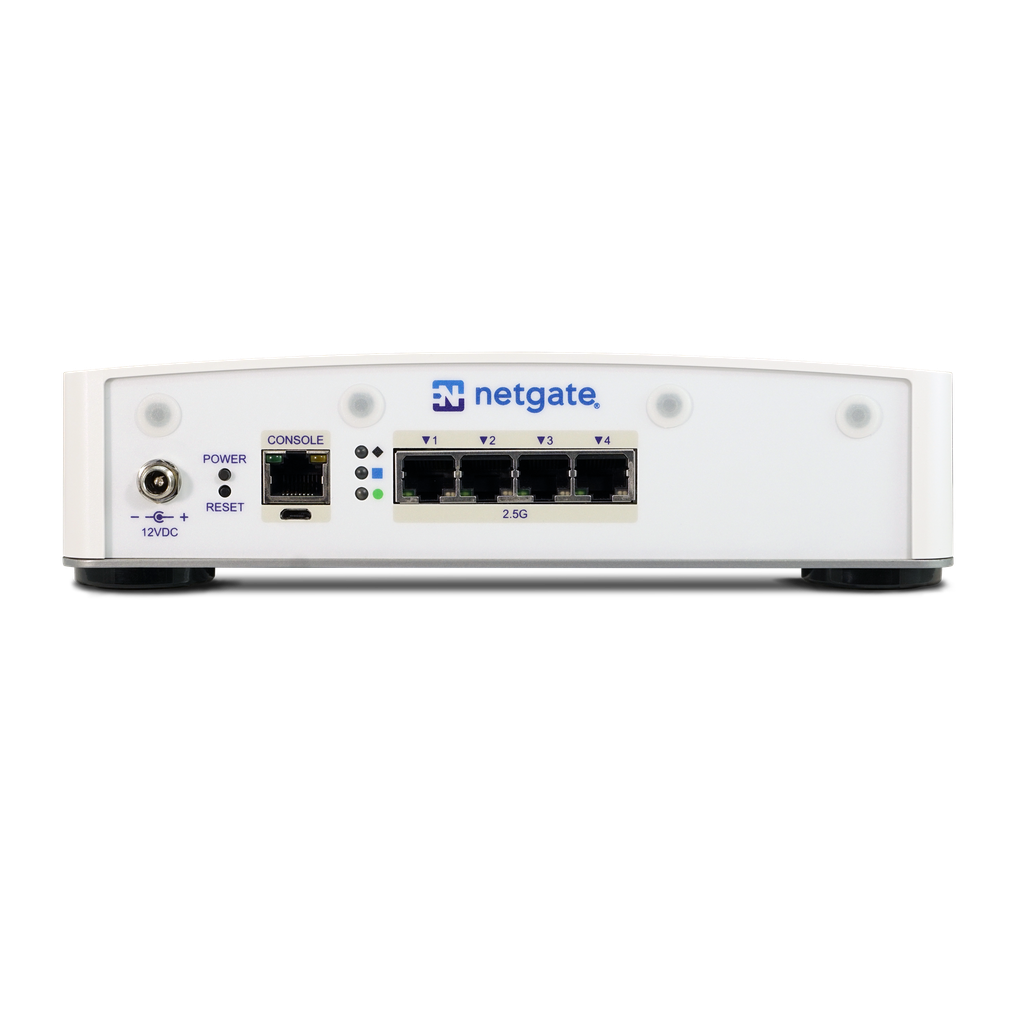

    4 x 2.5 GbE RJ45 "direct" LAN
    1 x 3.0 USB Right Side / MicroUSB + RJ45 Console (Cisco pinout)

    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.


    Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz

    CPU Cores


    Physical Network I/O ports

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet  LAN ports


    16 GB eMMC (onboard - soldered)


    4 GB LPDDR5

    Physical Expansion Card Slots

    1x M.2 (B-key slot) USB
    1x M.2 (B-key slot) x1 PCIe 3.0, USB
    1x M.2 (M-key slot) x4 PCIe 4.0

    Console Port

    1x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

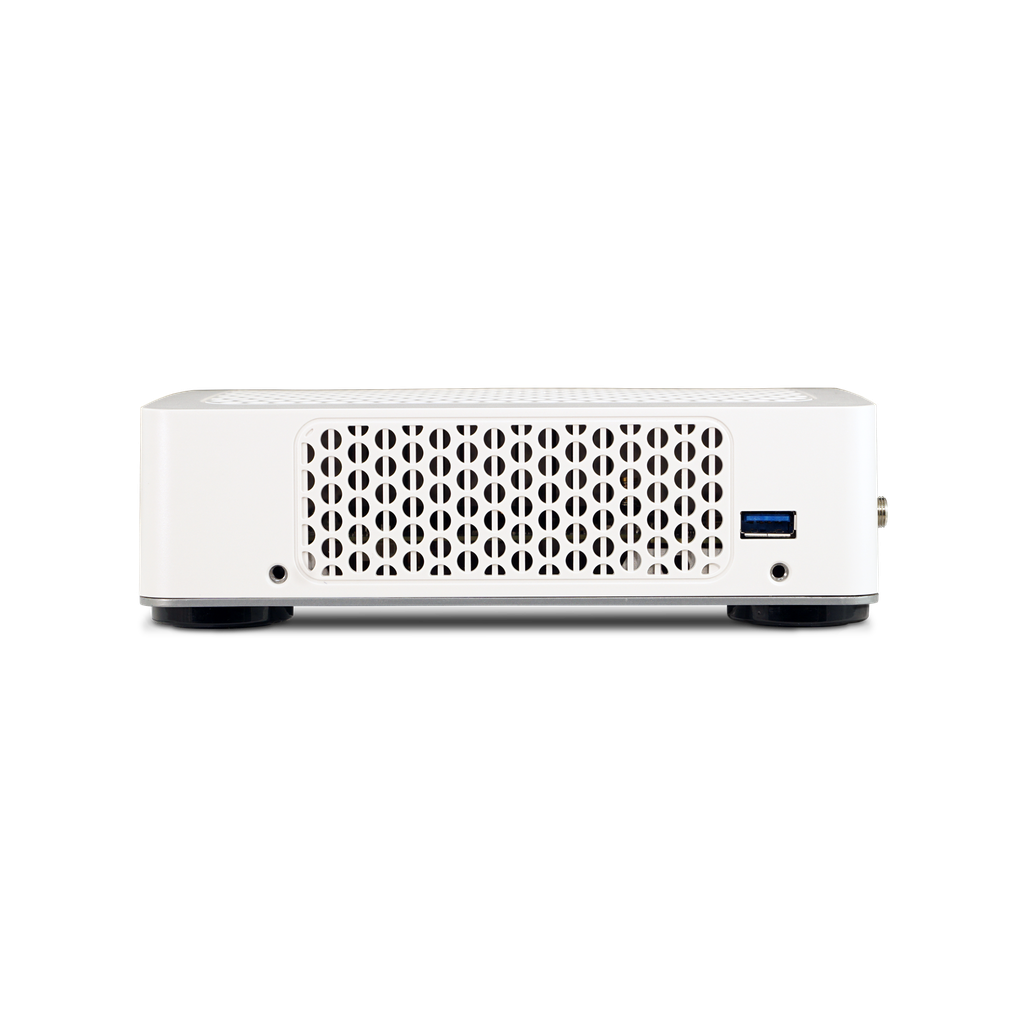

    USB Ports

    1x USB 3.0 jacks (USB-A female) Located on right side rear when viewed from system front


    3x 3-color LEDs (RGB) Software / bootloader controllable via GPIO


    Desktop - Aluminum, plastic, and steel enclosure.
    8.66 x 7.1 x 2.3 inches
    220 x 180 x 60 mm


    Optional wall mount kit (available soon)


    Passive - integrated aluminum chassis and heatsink


    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector
    - AC Inlet: IEC320-C7 (2 PIN) -
    - Power Cord: One US, UK, EU or ANZ power cord included.
    - US Power Cord: NEMA 1-15-P to IEC320-C7
    - UK Power Cord: BS 1363 to IEC320-C7
    - EU Power Cord: CEE7/16 to IEC320-C7
    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7


    0°C (32°F) to 40°C (104°F) - ambient

    CertificationsCE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA
