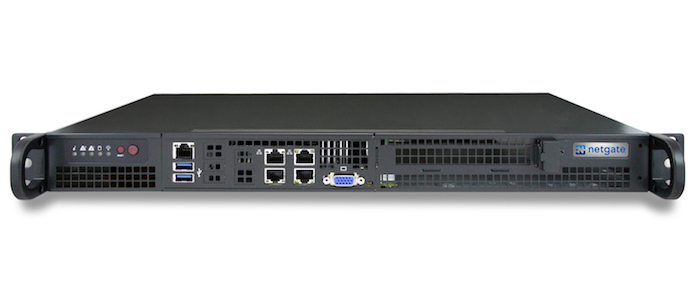

Netgate 1541 BASE pfSense+ Security Gateway

    4,595.12 4595.12 AUD 4,595.12

    4,595.12

    This combination does not exist.


    Netgate 1541 BASE pfSense+ Firewall Appliance
    Intel Xeon-DE D-1541 2.1 GHz FCBGA 1667 + SoC
    16GB RAM / 500GB M.2 SSD
    2 x 10GbE SoE / 2 x 1GbE / 2 x USB
    1 x IPMI / VGA Console


    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

    Please note the normal lead time for this product is 2 to 4 weeks.



    CPUIntel "Xeon-DE" D-1541, 2.1 GHz FCBGA 1667 supported SoC
    CPU CoresEight Cores, 45W
    NetworkingDual LAN via Intel® i350-AM2 1 Gigabit Ethernet
    Dual LAN via SoC 10GBase-T
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    1x Realtek RTL8201N PHY (dedicated IPMI)
    Storage500 GB M.2 SSD
    Memory16 GB ECC DDR4 RDIMM (expandable to 32 GB)
    Expansion1x PCI-E 3.0 x 16 (in x4) AOC Slot
    6x SATA3 ports
    Other Ports1x BMC integrated ASPEED AST2400
    1x IPMI Port
    1x VGA Port
    1x Fast UART 16550 Serial Port (header)
    USB Ports2x USB 3.0 ports
     LEDPower LED
    Hard drive activity LED
    2x Network activity LEDs
    System Overheat LED
    Information LED (temp., status)
    Enclosure19" 1U Rack Mount
    Form Factor1U 1.7"x17.2"x9.8"
    Cooling200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
     Power

    1x SATA DOM power connector

    100-240V, 50-60Hz, 2.6 Amp MAX
    AC Inlet: IEC320-C14 (3 PIN)
    Power Cord: NEMA 5-15P to IEC320-Cxx

    Environmental10°C to 35°C Operating Temp
    8% to 90% Operating Relative Humidity (non-condensing)
    Power Consumption20 W (idle)
    CertificationsFCC, CE, RoHS, UL
